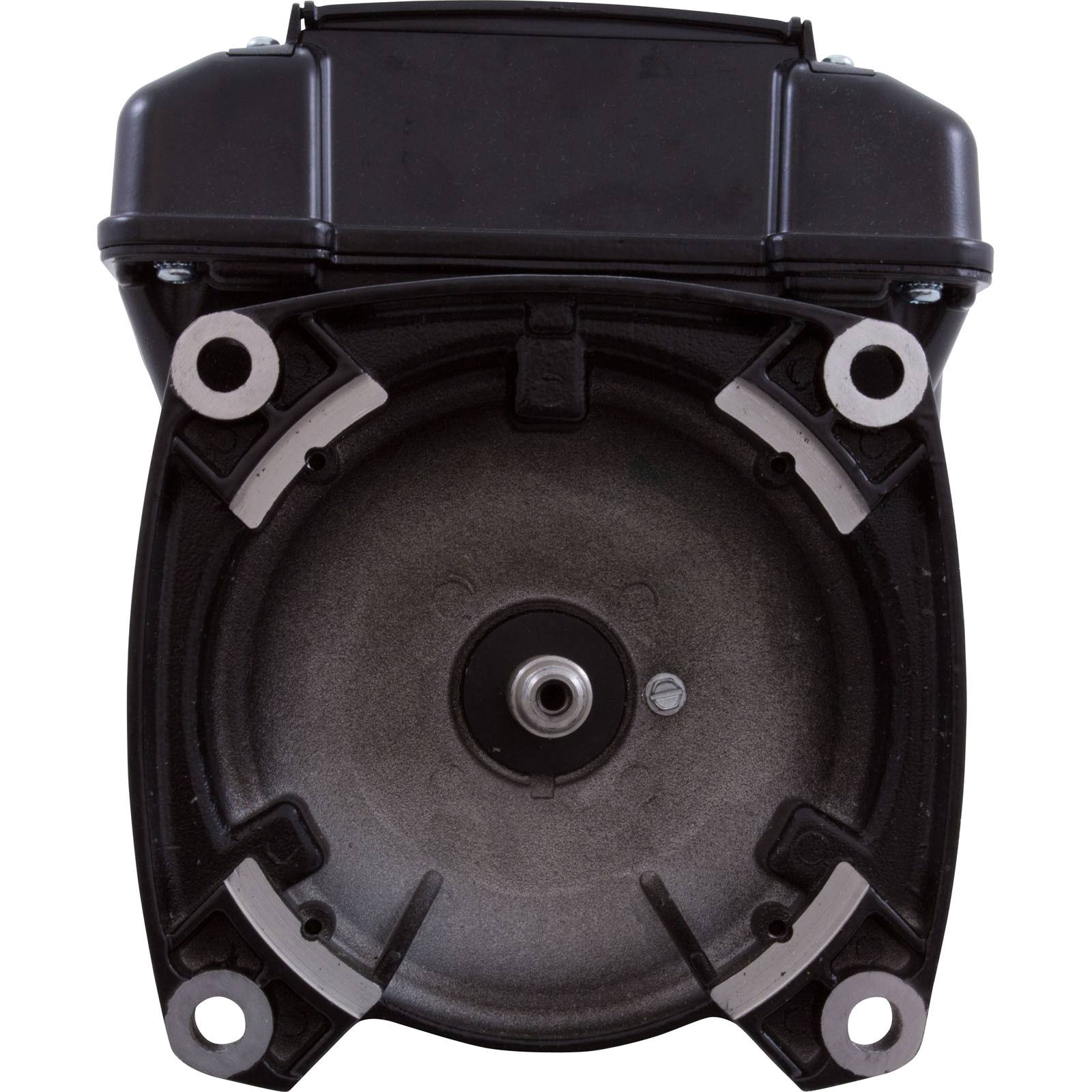

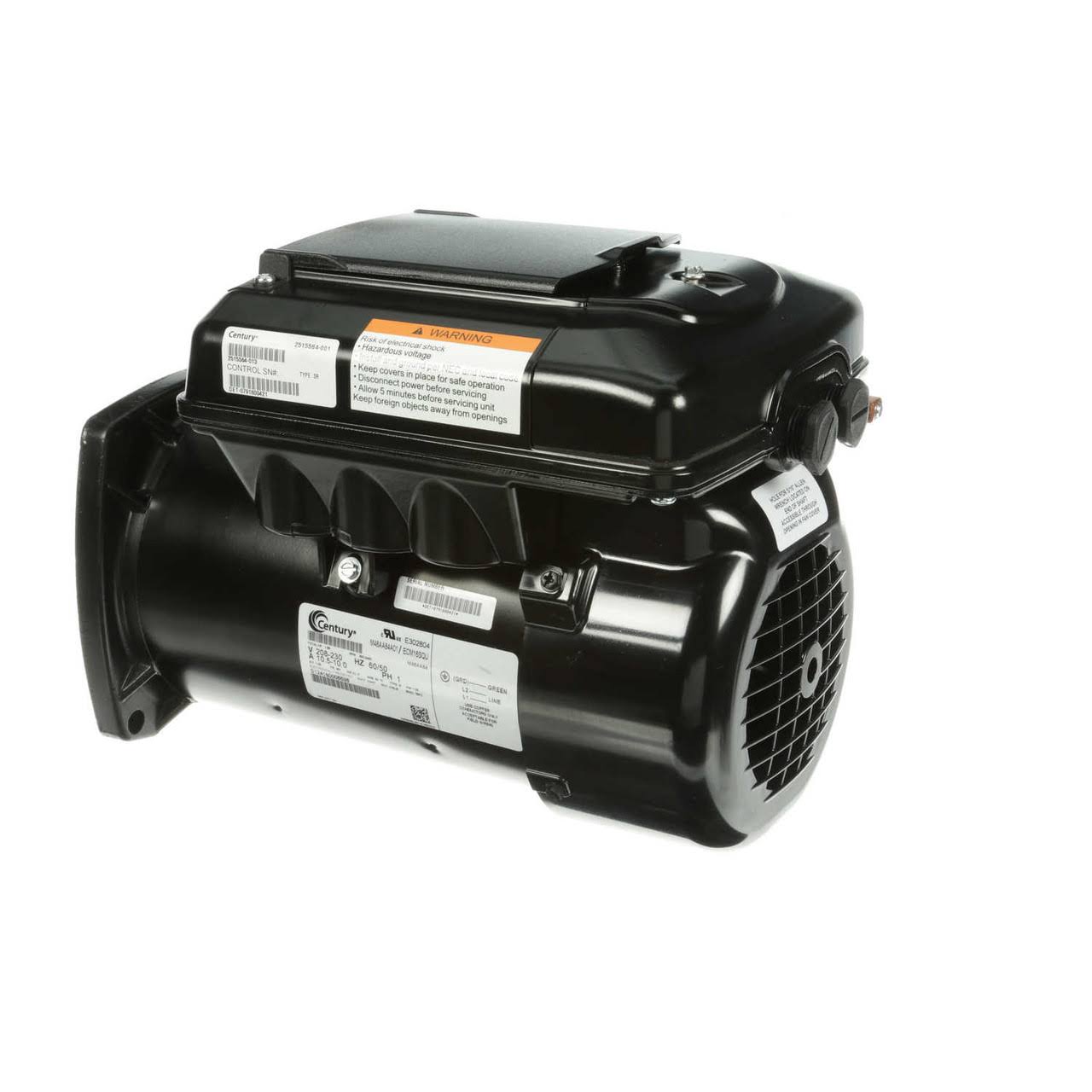

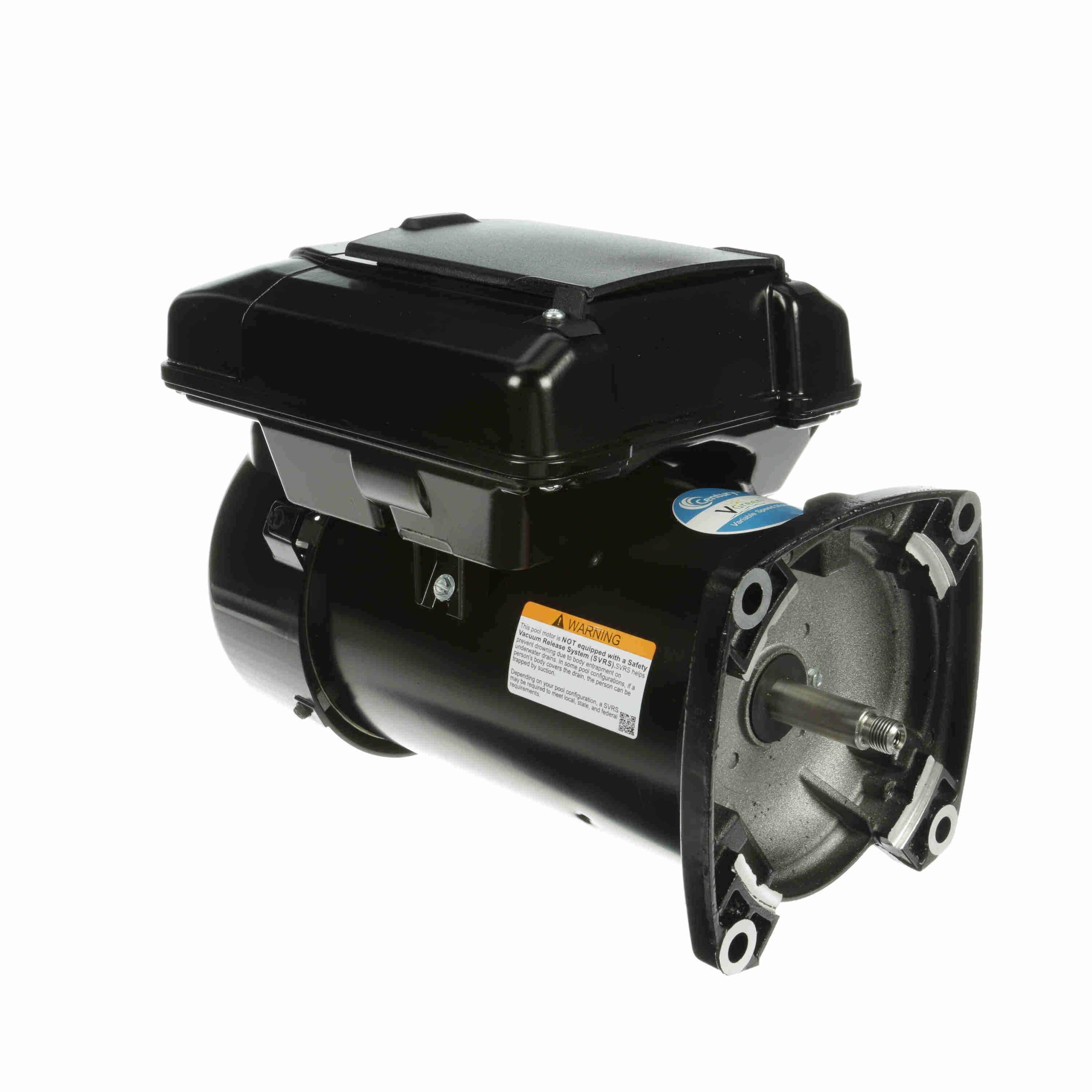

Century V-165 Variable Speed Motor Ecm16squ OIZ82_S2143

$618.00  $80.21




Product details:

The VGreen 165 variable speed motor is a durable TEFC replacement motor that can replace any single speed motor without replacing the pump. It features an integrated user interface that allows for easier and faster installation. It also has a durable TEFC construction with ECM technology that can deliver 40 to 80 percent energy savings versus a single speed motor. It includes features such as freeze protection, ball bearing, 303 stainless steel shaft, class F insulation, 50-degree Celsius ambient temperature, and UV and rain-proof enclosure. The Regal Beloit ECM16SQU VGreen 165 Variable Speed Motor Square is one of these VGreen 165 variable speed motors and this is a single-phase motor with an output of 1.65 HP, 60 Hz frequency, 10.5-10.0 Amperes, and a 208-230 Voltage. With a rolled steel frame material, it also has a 48Y frame with a Square Flange and a Clockwise Lead End rotation. Its dimensions include a frame length of 7.81 inches, shaft extension of 0.906 inches, a shaft diameter of 0.625 inches, and an overall length of 12.58 inches.
